Base Isolation Seismic Design for Milton Keynes Structures

Together, we solve the challenges of tomorrow.

LEARN MORE →

A set of high-damping rubber bearings arriving on a Milton Keynes site tells you a lot about the project before the first bolt is torqued. These aren't off-the-shelf components; each isolator has a design shear strain, a target effective period, and a vertical stiffness calibrated against the seismic hazard at a specific postcode. For a city built predominantly on the stiff, overconsolidated Oxford Clay Formation—with occasional drift deposits and alluvium along the Ouzel Valley—the isolator properties must reconcile a relatively short-period ground motion forecast with the need to shift the structure’s fundamental period well beyond 2.0 seconds. We start with a seismic microzonation study that maps the impedance contrast between the clay and the underlying Oolite limestone, because that boundary controls the amplification at the surface. When the bearing schedule arrives on the drawing board, every unit already has a displacement capacity derived from the 475-year and 2475-year return periods prescribed in the UK National Annex to BS EN 1998-1, not from a default catalogue value. The design process also accounts for the low-to-moderate seismicity of the region, which demands a careful balance between isolation efficiency and wind restraint—a detail often overlooked in generic approaches.

Base isolation in Milton Keynes isn't about designing for high seismicity—it's about controlling the resonance of stiff-clay sites where the spectral peak aligns dangerously with conventional building periods.

Our approach and scope

The Oxford Clay that underlies most of central Milton Keynes presents a fascinating paradox for base isolation design: its high stiffness at small strains yields a site classification of B or C under Eurocode 8, which would typically imply modest spectral accelerations, yet the impedance contrast with the Great Oolite Group at depth—typically 40 to 90 metres below ground level—can trap seismic energy and produce unexpected resonance effects in the 0.3 to 0.8 second period range. This is precisely the range where conventional fixed-base structures in the city would respond most strongly. Our design methodology couples borehole shear-wave velocity profiles with probabilistic seismic hazard assessment for the East Midlands region, feeding into non-linear time-history analyses of the isolation system. Where the near-surface profile includes granular drift, we often recommend supplementing the geotechnical model with CPT testing to refine the Vs profile and confirm the absence of liquefiable lenses—critical when designing for the deformation compatibility of service connections crossing the isolation plane. For heavier commercial and healthcare buildings, the isolation interface may incorporate lead-rubber bearings with a characteristic strength calibrated to control wind-induced movements without compromising the seismic period shift. The moat detailing and horizontal displacement capacity are then verified against the maximum considered earthquake, ensuring that the structure can move freely without pounding against adjacent retaining elements or basement walls.
Base Isolation Seismic Design for Milton Keynes Structures

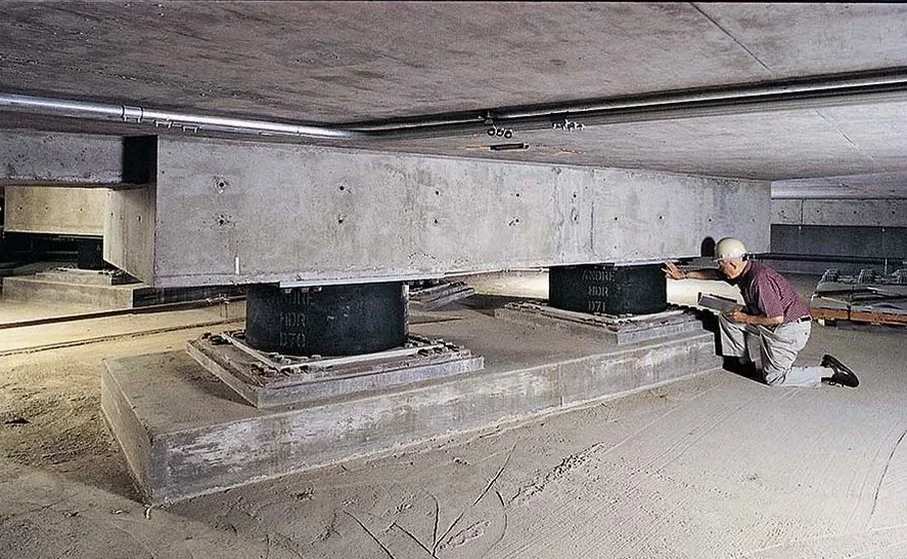

Technical reference image — Milton Keynes

Local considerations

Comparing two sites just 6 km apart in Milton Keynes reveals why a generic isolation design won't work. A building near Central Milton Keynes on weathered Oxford Clay (Grade II/III) with a shear-wave velocity around 280 m/s in the upper 30 metres will see a markedly different spectral shape than a structure in the Woughton area, where the drift deposits overlying the clay can introduce a sharp impedance contrast at shallow depth. The first site demands careful tuning of the isolation period to avoid the amplified plateau of the design spectrum; the second requires a more rigorous assessment of vertical ground motion and potential rocking of the isolation interface due to near-surface stiffness variations. The real danger lies in underestimating the displacement demand at the isolation plane when site-specific response spectra aren't derived from borehole geophysics. A bearing that bottoms out against its moat wall during a rare event doesn't just damage the isolator—it transmits the full seismic force into the superstructure, negating the entire isolation strategy. Our team has seen this scenario narrowly avoided on heritage-sensitive projects where the moat geometry was constrained by planning conditions, and only a detailed excavation monitoring plan during construction confirmed that the isolation gap was maintained within the specified tolerance.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnical-engineering1.com

Technical data

ParameterTypical value
Design reference life50 years (Importance Class II); 100 years (Class III/IV)
Target effective period (isolated)2.0 – 3.5 s depending on spectral demand
Design displacement (ULS)150 – 350 mm (site-specific, EC8-derived)
Equivalent viscous damping10 – 30% (bearing type and strain dependent)
Ground condition factor S1.20 – 1.35 (Ground Type C, UK National Annex)
Isolation interface gap (moat)Displacement ULS × 1.2 + seismic gap tolerance
Wind restraint thresholdServiceability limit state wind ≤ yield force of LRBs

Other technical services

01

Site-specific seismic hazard assessment

Probabilistic and deterministic seismic hazard analysis for Milton Keynes postcodes, producing uniform hazard spectra for the 475-year and 2475-year return periods. We incorporate local geology, source zone models for the East Midlands, and the UK National Annex parameters to define the design seismic action for the isolation system.

02

Geophysical ground investigation for isolation design

Downhole and crosshole seismic surveys to measure shear-wave velocity (Vs) profiles in the Oxford Clay and underlying formations. The data feeds directly into site classification per Eurocode 8 and the ground response analysis that determines the spectral demand at the isolation plane.

03

Non-linear time-history analysis of isolation systems

Three-dimensional modelling of lead-rubber, high-damping rubber, and friction pendulum isolation systems using suites of spectrum-compatible accelerograms. We verify bearing displacements, shear strains, and uplift potential under the maximum considered earthquake, including the effects of accidental torsion and vertical ground motion.

04

Isolation interface and moat detailing

Design of the seismic gap, moat covers, and service connections crossing the isolation plane to accommodate the predicted displacement without compromising fire safety, waterproofing, or accessibility. We coordinate the structural and architectural detailing to ensure the moat remains functional over the design life of the building.

Reference standards

BS EN 1998-1:2004+A1:2013 (Eurocode 8: Design of structures for earthquake resistance – General rules, seismic actions and rules for buildings), BS EN 1998-5:2004 (Eurocode 8: Foundations, retaining structures and geotechnical aspects), BS EN 1997-1:2004+A1:2013 (Eurocode 7: Geotechnical design – General rules), BS EN 15129:2018 (Anti-seismic devices), including type testing of elastomeric and sliding isolators, UK National Annex to BS EN 1998-1 (NA to BS EN 1998-1:2004+A1:2013) for local seismicity parameters

Frequently asked questions

Why would a building in Milton Keynes need base isolation when the UK isn't highly seismic?

The UK experiences low-to-moderate seismicity, but the combination of stiff clay sites—like those on the Oxford Clay in Milton Keynes—and long-period ground motion can create resonance conditions that amplify structural response. Base isolation works by shifting the building's fundamental period away from the spectral peak, reducing floor accelerations and inter-story drifts. For critical facilities such as hospitals, data centres, and emergency response hubs, this performance improvement is often required to meet operational continuity targets after an earthquake, regardless of the relatively low PGA values. The design is driven by displacement control and damage reduction, not by a high-hazard seismic environment.

What ground investigation is required before designing a base isolation system?

A comprehensive ground investigation for base isolation design must go beyond standard bearing capacity boreholes. We need shear-wave velocity (Vs) profiles to at least 30 metres depth—and preferably to the top of the Great Oolite limestone—obtained via downhole or crosshole geophysics. The investigation must also classify the site according to Eurocode 8 (BS EN 1998-1) ground types, which requires the average Vs in the upper 30 metres (Vs,30) and the depth to the seismic bedrock. Additional CPT or SPT data help refine the stratigraphy and identify any soft lenses within the Oxford Clay that could affect vertical ground motion. The borehole log must be detailed enough to support a site response analysis, not just a default classification.

What is the typical cost range for base isolation seismic design on a Milton Keynes project?

For a medium-scale building project in Milton Keynes, the seismic design package for base isolation—including site-specific hazard assessment, ground response analysis, isolator specification, and non-linear time-history analysis—typically ranges from £3,810 to £6,340. The final cost depends on the building's importance class, the number of ground motions required for the analysis suite, and whether peer review by an independent checker is specified. This covers the design engineering scope and does not include the supply or installation of the isolation bearings themselves, which are procured separately from specialist manufacturers.

How do you verify that the isolation bearings will perform as designed over the building's lifetime?

Verification follows the testing protocols in BS EN 15129:2018. Each bearing type undergoes prototype testing that includes full-scale dynamic tests at the design displacement, ageing and environmental exposure tests, and property verification under service and ultimate conditions. For production bearings, a sampling programme confirms that the manufacturing tolerances for shear modulus, yield force, and damping ratio fall within the acceptable range defined in the design specification. We also specify a maintenance and inspection schedule that includes visual checks of the bearings and moat clearances at defined intervals, ensuring that any degradation of the rubber compounds or accumulation of debris in the seismic gap is detected and addressed before it compromises the isolation function.
